International Journal of Coronaviruses

International Journal of Coronaviruses

Current Issue Volume No: 3 Issue No: 4

Short-communication Article Open Access
  • Available online freely Peer Reviewed
  • Cytokine Profiling In COVID-19 Patients In A Tertiary Hospital In Saudi Arabia; The Pre-Storm Phase

    Alabdely Mayyadah 1
        Conca Walter 1 2 3     AlKaff Morad 4     Alonaizie Aziza 2     Almohanna Futwan 2 3

    1 Department of Medicine, King Faisal Specialist Hospital & Research Centre, Riyadh, Saudi Arabia

    2 Department of Executive Health Medicine, King Faisal Specialist Hospital & Research Centre, Riyadh, Saudi Arabia Department of Cell Biology, King Faisal Specialist Hospital & Research Centre, Riyadh, Saudi Arabia

    3 College of Medicine, Alfaisal University, Riyadh, Saudi Arabia

    4 Department of Pathology and Laboratory Medicine, King Faisal Specialist Hospital & Research Centre, Riyadh, Saudi Arabia.

    Abstract

    Background

    As COVID-19 immunomodulation has been a part of interest for studies, it has been found that severe coronavirus disease 2019 (COVID-19) is associated with hyper-inflammatory response and increased levels of interleukin-6 (IL-6) and interleukin-10 (IL-10). This can progress to cytokine storm syndrome and eventually development of acute respiratory distress syndrome (ARDS). Interleukin-1 receptor antagonist (IL-1RA) is a protein that is a member of the interleukin 1 cytokine family. Monocyte chemoattractant protein 1 (MCP1) is a small cytokine that belongs to the CC chemokine family. Interferon gamma-induced protein 10 (IP-10) is a protein secreted by several cell types in response to Interferon-Gamma (IFN-γ). All of these have roles in the immune response and eventually development of a cytokine storm.

    Methods

    Serum levels of IL-1RA, MCP-1 and IP-10 were measured in a cohort of 21 patients infected with severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) on admission to a tertiary care hospital in Riyadh, Saudi Arabia, as well as in an approximately age-sex matched group of 4 uninfected controls. The study population was classified into severe, moderate, mild and controls.

    Results

    Serum levels of IL-1RA, MCP-1 and IP-10 were found to be elevated before the clinical deterioration.

    Conclusion

    These cytokines may play a role in early detection of disease severity especially in the pre-storm phase. Medications that target cytokines may prevent the development of an overt cytokine storm.

    Author Contributions
    Received Dec 25, 2021     Accepted Jan 08, 2022     Published Jan 12, 2022

    Copyright© 2022 Alabdely Mayyadah, et al.
    License
    Creative Commons License   This work is licensed under a Creative Commons Attribution 4.0 International License. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

    Competing interests

    The authors have declared that no competing interests exist.

    Funding Interests:

    Citation:

    Alabdely Mayyadah, Conca Walter, AlKaff Morad, Alonaizie Aziza, Almohanna Futwan et al. (2022) Cytokine Profiling In COVID-19 Patients In A Tertiary Hospital In Saudi Arabia; The Pre-Storm Phase International Journal of Coronaviruses. - 3(4):19-31
    DOI 10.14302/issn.2692-1537.ijcv-21-4051

    Results

    Results Patients’ Characteristics

    Demographic characteristics, main comorbidities, clinical manifestations, medications, and vital signs on presentation are shown in Table 1. Twenty-one consecutive participants (mean age 49 ± 22; 9 m, 12 f) presented to the emergency department with one or more of the following chief complaints (in descending order of frequency): fever, dry cough, sore throat, rhinorrhea, fatigue, headache, diarrhea, anosmia, productive cough, dyspnea, ear pain, ageusia, anorexia, abdominal pain, nausea, emesis, seizure, syncope, myalgia, rash, and no symptoms. Fever and dry cough were the principal manifestations in all patients, whereas other symptoms varied among severity groups. Among the patients, comorbidities were as follows: hypertension, diabetes mellitus, dyslipidemia, coronary artery disease, congestive heart failure, atrial fibrillation, chronic obstructive pulmonary disease, cerebrovascular disease, leukemia in remission, colorectal cancer in remission, post-renal transplant, Hodgkin’s lymphoma in remission, and hypothyroidism.

    Demographic characteristics, comorbidities, clinical manifestations, medications, and vital signs in patients admitted to the hospital with COVID-19.
    All patients (n=21) Mild (n=6) Moderate (n=9) Severe (n= 6)
    Age (years), mean (±SD) 49.7 (22.3) 29 (7.4) 47 (18. 2) 74.6 (11.3)
    Range 20 – 90 20 – 41 27 – 79 54 – 90
    Age by group, n (%)
    <40 9 (42.8) 5 (83.3) 4 (44.4) 0 (0)
    40 – 59 5 (23.8) 1 (16.6) 3 (33.3) 1 (16.6)
    60 - 80 5 (23.8) 0 (0) 2 (22.2) 3 (50)
    80+ 2 (9.5) 0 (0) 0 (0) 2 (33.3)
    Sex, n (%)
    Male 9 (42.8) 2 (33.3) 2 (22.2) 5 (83.3)
    Female 12 (57.1) 4 (66.6) 7 (77.7) 1 (16.6)
    Comorbidities, n (%)
    Hypertension 8 (38) 0 (0) 3 (33.3) 5 (83.3)
    Diabetes 5 (23.8) 0 (0) 2 (22.2) 3 (50)
    Dyslipidemia 3 (14.2) 0 (0) 0 (0) 3 (50)
    Coronary Artery Disease 3 (14.2) 0 (0) 0 (0) 3 (50)
    Congestive Heart Failure 2 (9.5) 0 (0) 0 (0) 2 (33.3)
    COPD 2 (9.5) 0 (0) 0 (0) 2 (33.3)
    Atrial Fibrillation 2 (9.5) 0 (0) 1 (11.1) 1 (16.6)
    Cerebrovascular Disease 1 (4.7) 0 (0) 0 (0) 1 (16.6)
    Other 11 (52.3) 4 (66.6) 4 (44.4) 3 (50)
    Symptoms at presentation, n (%)
    Fever 7 (33.3) 1 (16.6) 3 (33.3) 3 (50)
    Dry Cough 14 (66.6) 3 (50) 7 (77.7) 4 (66.6)
    Sore throat 6 (28.5) 3 (50) 3 (33.3) 0 (0)
    Rhinorrhea 5 (23.8) 2 (33.3) 2 (22.2) 1 (16.6)
    Fatigue 5 (23.8) 1 (16.6) 2 (22.2) 2 (33.3)
    Headache 4 (19) 1 (16.6) 2 (22.2) 1 (16.6)
    Diarrhea 2 (9.5) 0 (0) 2 (22.2) 0 (0)
    Anosmia 2 (9.5) 1 (16.6) 1 (11.1) 0 (0)
    Productive cough 2 (9.5) 0 (0) 0 (0) 2 (33.3)
    Dyspnea 0 (0) 0 (0) 0 (0) 0 (0)
    Otalgia 1 (4.7) 0 (0) 0 (0) 1 (16.6)
    Ageusia 0 (0) 0 (0) 0 (0) 0 (0)
    Anorexia 0 (0) 0 (0) 0 (0) 0 (0)
    Nausea 0 (0) 0 (0) 0 (0) 0 (0)
    Vomiting 1 (4.7) 0 (0) 0 (0) 1 (16.6)
    Abdominal pain 0 (0) 0 (0) 0 (0) 0 (0)
    Seizure 1 (4.7) 0 (0) 0 (0) 1 (16.6)
    Syncope 1 (4.7) 0 (0) 0 (0) 1 (16.6)
    Myalgia 0 (0) 0 (0) 0 (0) 0 (0)
    Rash 0 (0) 0 (0) 0 (0) 0 (0)
    Asymptomatic 1 (4.7) 0 (0) 0 (0) 1 (16.6)
    Medications, n (%)
    Beta-Blocker 5 (23.8) 0 (0) 1 (11.1) 4 (66.6)
    ACEI or ARB 5 (23.8) 0 (0) 1 (11.1) 4 (66.6)
    Oral Hypoglycemic 4 (19) 0 (0) 2 (22.2) 2 (33.3)
    Diuretic 3 (14.2) 0 (0) 0 (0) 3 (50)
    Anticoagulant 2 (9.5) 0 (0) 0 (0) 2 (33.3)
    Antidepressant 0 (0) 0 (0) 0 (0) 0 (0)
    Immunosuppressant 1 (4.7) 0 (0) 0 (0) 1 (16.6)
    Antiepileptic 1 (4.7) 0 (0) 0 (0) 1 (16.6)
    Other 11 (52.3) 2 (33.3) 6 (66.6) 3 (50)
    Vitals at presentation, mean (±SD)
    Temperature 37.1 (0.56) 36.9 (0.40) 37.1 (0.44) 37.4 (0.68)
    Heart Rate 84 (13.8) 83 (12.2) 88 (14.2) 79 (12.9)
    Systolic Blood Pressure 123 (17.9) 108 (10.4) 130 (20.5) 127 (11.9)
    Diastolic Blood Pressure 74 (11) 68 (5.4) 81 (13.6) 72 (4.9)
    Respiratory Rate 20 (2.1) 19 (0.7) 20 (0.6) 21 (3.4)
    O2 saturation 96% (2.5) 97% (1.2) 96% (1.5) 94% (3.5)
    BMI 27.7 (4.2) 26.9 (3.4) 28.9 (4.6) 28.1 (6.2)



    Outcome Data

    To compare cytokine expression levels between COVID-19 patients and controls, plasma cytokine levels were measured using Luminex in 4 patient groups: severe COVID-19 (n = 6), moderate COVID-19 (n = 9), Mild COVID-19 (n = 6), and controls (n = 4). Leukocyte profile, CRP, Ferritin and Beta 2 microglobulin were also measured (figure 1). Beta-2 microglobulin was elevated in severe patients, compared to moderate, mild and controls (P <0.001) Figure 2. IP-10 level was significantly elevated in severe COVID-19 patients, in comparison to controls, mild and moderate (P< 0.0103), (P< 0.0188), (P< 0.0448) respectively. IL-1RA was also significant elevated in severe patients in comparison with other groups (figure 3). TNFA was significantly elevated in the severe COVID-19 patients’ group, compared to controls, mild, and moderate groups (P< 0.001) (Figure 4). Those biomarkers were obtained before the clinical deterioration and development of cytokine storm and ARDS, which indicate that those cytokines may play a role in early detection and recognition of severe COVID-19 disease and risk of development of cytokine storm.

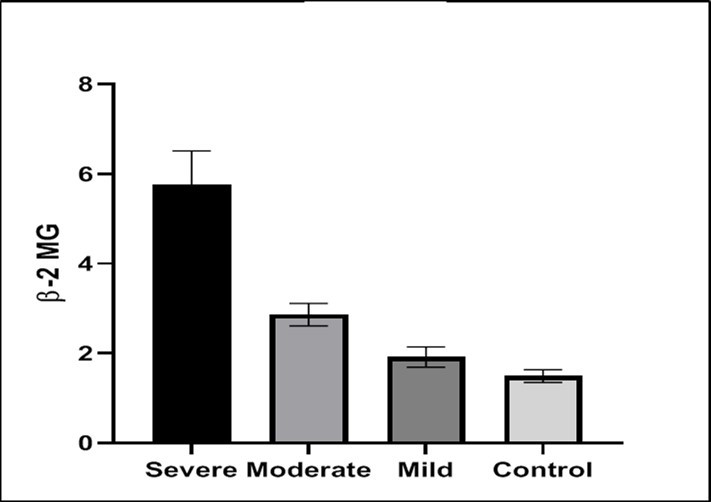

    β2-m levels in COVID-19 patients on admission to the hospital. Serum β2-m levels (mg/l) measured at the time of first SARS-Cov-2 detection are shown in relation to the disease severity in 6 patients with severe, 9 patients with moderate, 4 patients with mild, and 4 approximately age-sex matched uninfected controls.
    Tukey's multiple comparisons test Mean Diff. 95.00% CI of diff. Adjusted P Value
    Severe vs. Moderate 2.903 1.334 to 4.473 0.0002
    Severe vs. Mild 3.852 2.048 to 5.655 <0.0001
    Severe vs. Control 4.274 2.352 to 6.197 <0.0001
    Moderate vs. Mild 0.9483 -0.7128 to 2.609 0.4021
    Moderate vs. Control 1.371 -0.4188 to 3.160 0.1736
    Mild vs. Control 0.4225 -1.575 to 2.420 0.9333

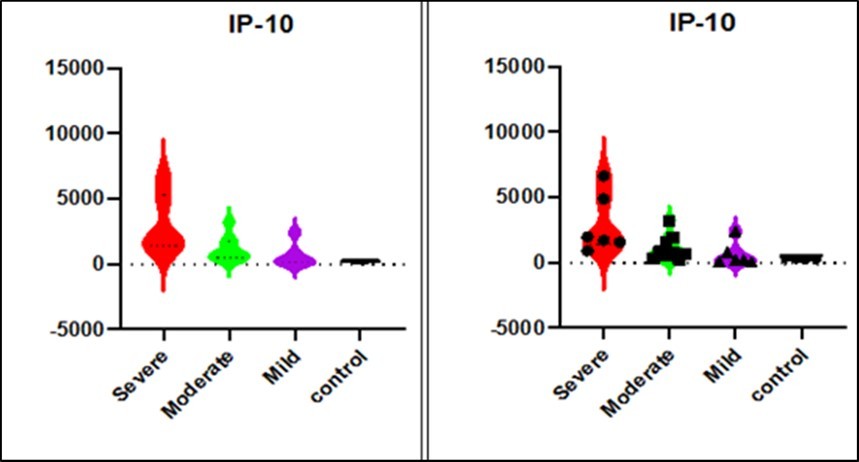

    IP-10 levels in COVID-19 patients on admission to the hospital. IP-10 levels measured at the time of first SARS-Cov-2 detection are shown in relation to the disease severity in 6 patients with severe (red), 9 patients with moderate (green), 4 patients with mild (purple), and 4 approximately age-sex matched uninfected controls (black).
    Dunnett's multiple comparisons test Mean Diff. 95.00% CI of diff. Significant? Adjusted P Value A-?
    Severe vs. Moderate 1814 36.66 to 3592 Yes 0.0448 B Moderate
    Severe vs. Mild 2296 349.0 to 4244 Yes 0.0188 C Mild
    Severe vs. control 2710 532.4 to 4887 Yes 0.013 D control

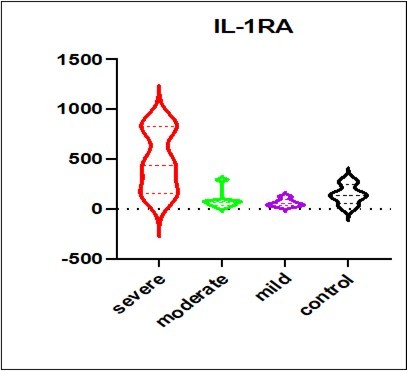

    IL-1RA levels in COVID-19 patients on admission to the hospital. IL-1RA levels measured at the time of first SARS-Cov-2 detection are shown in relation to the disease severity in 6 patients with severe (red), 9 patients with moderate (green), 4 patients with mild (purple), and 4 approximately age-sex matched uninfected controls (black).
    Dunnett's multiple comparisons test Mean Diff. 95.00% CI of diff. Significant? Adjusted P Value A-?
    severe vs. moderate 60.6 23.27 to 97.94 Yes 0.0014 B moderate
    severe vs. mild 66.77 25.87 to 107.7 Yes 0.0013 C mild
    severe vs. control 70.62 24.89 to 116.3 Yes 0.0022 D control

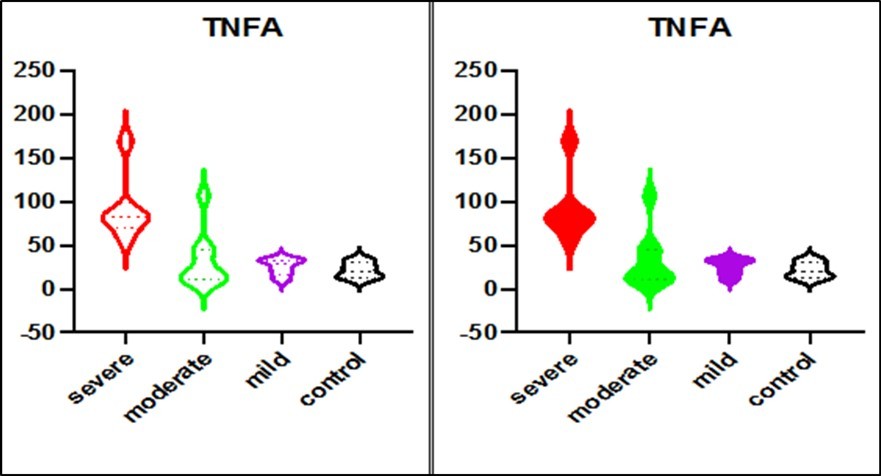

    TNFA levels in COVID-19 patients on admission to the hospital. TNFA levels measured at the time of first SARS-Cov-2 detection are shown in relation to the disease severity in 6 patients with severe (red), 9 patients with moderate (green), 4 patients with mild (purple), and 4 approximately age-sex matched uninfected controls (black).
    Dunnett's multiple comparisons test Mean Diff. 95.00% CI of diff. Significant? Adjusted P Value A-?
    severe vs. moderate 60.6 23.27 to 97.94 Yes 0.0014 B moderate
    severe vs. mild 66.77 25.87 to 107.7 Yes 0.0013 C mild
    severe vs. control 70.62 24.89 to 116.3 Yes 0.0022 D control

    Discussion

    Discussion

    In this study, we found that the early production of inhibitory mediators such as IL-1RA, IP-10 and MCP-1 were significantly associated with severe disease. This shows similarity to influenza virus infections, where similar associations with disease severity were also observed in both pandemic (pdm2009) H1N1 and avian H5N1 infections 21222324. The IL-1RA is an early inhibitory cytokine that suppresses proinflammatory cytokines and T lymphocyte responses. IL-1RA is a cytokine that controls inflammatory responses during early stages of immune activation 25. Early IL-1RA production could affect induction of proinflammatory and antiviral cytokines during the early phase of COVID-19 infection. In mild cases, the inhibitory role of elevated IL-1RA may be overridden by the robust adaptive immune responses to the virus. However, in the severe cases, much higher levels of IL-1RA were observed in comparison with mild cases, suggestive of an overactive immune response, which may contribute to the switch from controlled and protective immune environment to inflammation-induced tissue damage. Serum levels of IL-1RA, MCP-1 and IP-10 were found to be elevated before the clinical deterioration, indicating that these cytokines may play a role in early detection of disease severity especially in the pre-storm phase. Medications that target cytokines may prevent the development of an overt cytokine storm.

    Given the obvious limitations of a single-center study and the small sample size, larger cohorts, preferably in areas of the world other than the Arabian Peninsula, are needed to definitively assess the value of IL-1RA, IP-10 and MCP-1 levels as independent biomarkers of disease severity and predictors of outcomes with the advantage of having less fluctuations or extraneous influences than other parameters, such as iron stores for ferritin, coagulopathies for D-dimers and secondary bacterial infections for CRP.

    Abbreviations

    KFSHRC: King Faisal Specialist Hospital and Research Centre; COVID-19: Coronavirus Disease 2019; IL-6: Interleukin-6; IL-10: Interleukin-10; ARDS: Acute Respiratory Distress Syndrome; IL-1RA: Interleukin-1 receptor antagonist; MCP1: Monocyte chemoattractant protein 1; IP-10: Interferon gamma-induced protein 10; IFN-γ: Interferon-Gamma; SARS-CoV-2: severe acute respiratory syndrome coronavirus 2; CBC: complete blood count; TNF-α: Tumor Necrosis Factor alpha; eGFR: estimated glomerular filtration rate; SD: Standard Deviation.

    Conclusion
